Low pressure casting is the liquid metal filling into the cavity by pressure,then become a casting.Due to the pressure is low, it is called a low pressure casting.

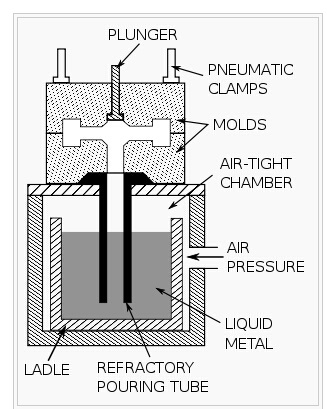

Here is the production process of low pressure casting: dry compressed air is piped in the seal of the crucible (or sealed cans),under the action of gas pressure, the liquid metal along the lift tube & through gate smoothly into the cavity and remain the gas pressure on the surface of the liquid in the crucible, until the casting solidification completely.Then remove the gas pressure,make un-solidified metal liquid flow in the tube crucible, then open the mould,and carry-out casting by cylinder.Henan Metals & Minerals could manufacturer the aluminum castings by low pressure casting process,the weight we can produce is from 3Kg to 200 kg.

The Outer Cover is used for Taxiway Lights

1. Material: Aluminum Alloy

2. Production process:

- Low pressure casting

- Weight of posted parts: 5-22 Kg

3. Pattern Type:The Pattern Made from High Quality Mold Steel

4. Core box type: Core Boxes Made from High Qualit Mold Steel

5. Iron Melting With: Electric Furnace

6. On site Melting Iron Temperature Inspection: Temperature Detector

7. QC involved:

8. Chemical composition by spectrumeter,

9. Microstructure tester after heat treatment.

10. Crack by MR detector.

11. Dimension can be controlled by CMM.

12. Shipping method: LCL or FCL container

13. Payment term: T/T, L/C

. Reports supplied:

. Material certificate

. Mechanical properties

. Dimension report

Advantages:

. CNC machining facilities Japan origin;

. Chemical composition assured by spectrometer;

. Microstructure, Hardness tester, Coating tester, Crake testing can be handled in house;

. Most of our experience accumulate in the different process and in the different material, therefore we often assist customer to do optimizing job both on designing and on cost reduction.

For more informations about any Aluminum castings, please contact our technical service department at info@henanmetals.com .
